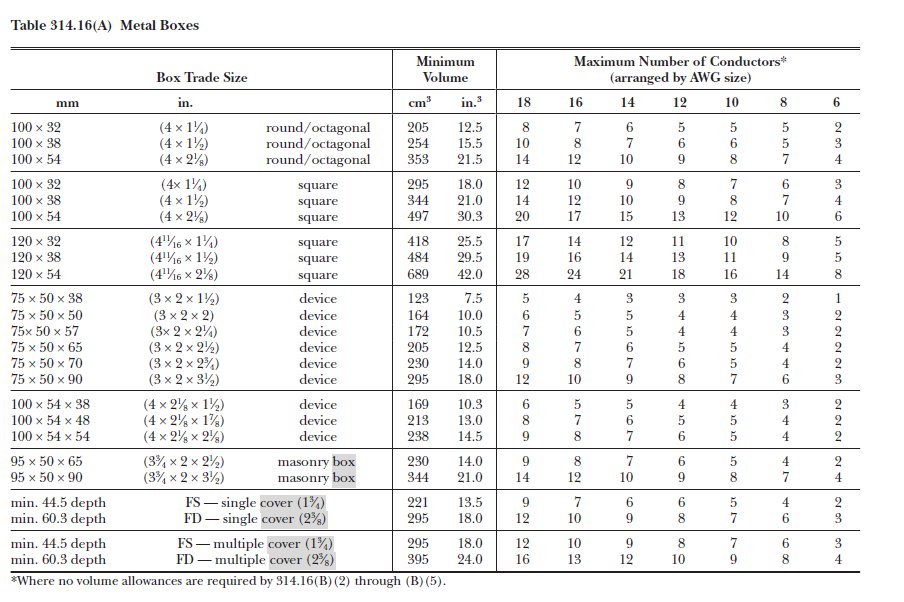

Junction Box Fill Calculator. Fill shall be calculated using table 314.16 (b). Next, we’ll look at how to use these important tools.
Box Fill Table Nec Riz Books from rizbooks.blogspot.com
The box volume should always be greater than or equal to the box fill. Amazon prime student 6 month free trial: The box has the equivalent of five 14 awg conductors and six 12 awg conductors.
A Great Tool To Help Electricians, Engineers And Contractors Answer The Question, What Size Conduit Do I Use Per The Nec®? The App Will Calculate The Conduit Fill Percentages And Jam Probability For Multiple Conductors Per Nec® Guidelines.
Conductors that pass through box without splice or connection (less than 12 in. Although the pictures here are by far the most extreme box fill code violations, some common sense along with electrical code requirements limits the number of wires that can be put into an electrical box. Determine the number and size of conductor equivalents in the box.
If You're Pulling Several 1/0 Awg Conductors Through The Box, How Are You Going To Pull Them Through.
Determine if you need a straight or splice/angle/u pull, as you need to use different formulas. Calculates the minimum volume required for junction and outlet boxes containing 6 awg and smaller conductors. 8'' x 2 = 16''.
Most Of These Requirements Can Be Found In Article 314 (Outlet, Device, Pull, And Junction Boxes;
Let’s look closer at these requirements for box fill calculations. Simply enter the conduit type and size, then specify your. Use 314.28 (a) to size pull boxes, junction boxes, and conduit bodies when using conductor sizes 4 awg and larger.
Calculates The Minimum Cubic Volume Required For A Device Or.

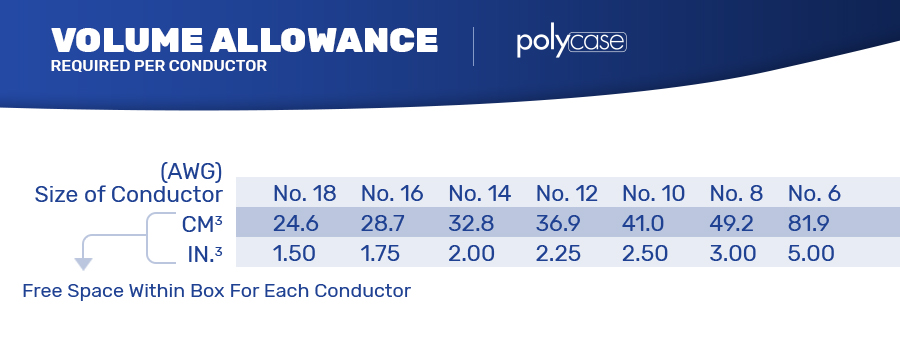

4 wire connectors (3 smaller ones, 1 larger one) 28 conductors x 24.6 ml = 688.8 ml plus wire connectors (it says pair 2 or 3 counts as one wire), if i calculate at 2 wires it would be 49.2 ml, however to be extra safe ill add 5 additional wires. Then, under # of cables, enter your details and hit calculate. You can review the following articles in the same course for more information:
No Matter How Many Ground Wires, They Only Count As One Conductor In The Box.
These electrical box fill calculations can be done the easy way using the volume allowances stamped. Amazon prime student 6 month free trial: 8'' x 2 = 16''.
